If you are choosing Pre define label stock mode of printing, you need to select label product with its product number to get already defined print settings (label details) including label width, height, margins, paper used, orientation etc.


Custom option is also available to adjust label width, height, various margins and barcode spaces as per need and save it for future reference.

Barcode Font
Barcode Font
Barcode Density Adjustment
Barcode Density Adjustment
Bar Height Adjustment
Bar Height Adjustment

Pre Define Label Stock Option


Video Tutorial on Pre Define Label Stock Printing





Barcode Label Design :

There are two ways of designing barcodes either using Barcode Designing View mode or Barcode Settings mode. Here, we are going to describe barcode Pre Define Label Stock Print settings with Barcode Settings option.


Margin adjustment
Go to Barcode technology and choose desired font type. Set barcode value, header and footer. You can also set bar height and density etc. according to your need.


Barcode Printing using Pre Define Label Product :


Printing Settings

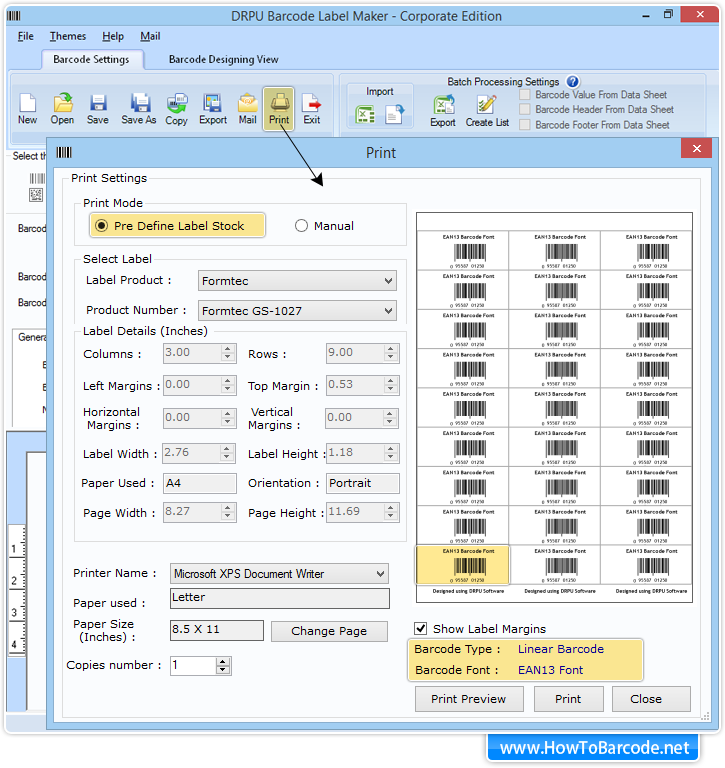

After designing barcode label, click on barcode icon from toolbar and choose Pre Define Print mode. At the right side, you can see that barcode is exceeding the dimension of pre define label space due to which footer is not appeared.


Reset Barcode Height and Margins :


Reset Values
You need to reset Bar Height along with various margins (value margin, header and footer margin), so that it appears perfectly on Pre Define Label Space.


Barcode after resizing :


Pre define label stock option
Now, designed barcode can be print properly on the required sheet with pre defined settings.

In similar manner, you may also found the situation that barcode width may exceed the Pre defined label product width. In that case you need to do some adjustments in barcode properties (like Density, Narrow to Wide Ratio etc).
