About Databar 2D Barcode Symbology


Barcode Label Maker – Corporate Edition supports Databar 2D Barcode symbology to design and print barcodes for different industries. Databar barcode symbology can encode up to 20 trillion values. Databar barcode font is used where item size is very small as well as where additional information is need to be store such as product weight, serial numbers, country of origin or expiration dates.


Application Area : Widely used in Grocery, Retail (POS) and Healthcare.

Sample of Databar Barcode Font
Sample of Databar Barcode Font
Databar Font Application area
Application area
Databar Font Labels
Databar Font Labels

Databar 2D Barcode Font



Databar Barcode Font Video Tutorial

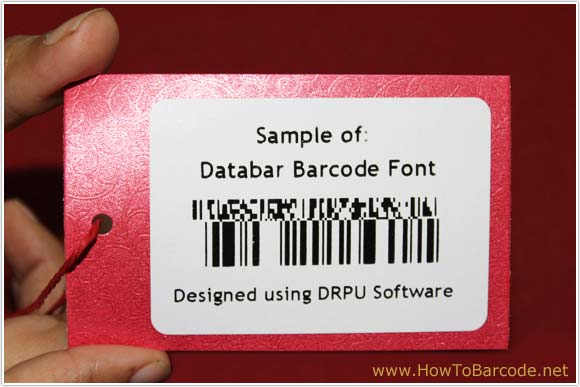

Sample of Databar Barcode Font





Databar Barcode Font Sample


Sample of Databar 2D Barcode symbology by Barcode maker software – Corporate Edition.




Designing Procedure:


We provide step by step procedure to understand how to design Databar 2D Barcode using DRPU Software Barcode Designing View panel. You can also create your barcode using Barcode Settings panel.

Click on barcode icon from drawing tools to insert it on your label. Double click on inserted barcode to edit its properties.



Select Barcode Technologies and Type :


Choose Barcode Technologies


Select 2D Barcode type and barcode font and set Barcode value, Composite Data (Composite Data value is a special 2D Composite component symbol printed above the linear barcode.), barcode header, footer etc. as shown in above screen.



Set Margins :


Margins Adjustment


Specify bar height, X dimension, margins etc. and click on OK button.




Specify Card Shape and Size :


Set Card Properties


Now, choose card shape, background and specify card name and size etc. using card properties.



Printing Procedure:


After completing designing process, click on print button from above toolbar and choose one of the printing modes (Manual or Pre define label stock).

Manual Print Settings :


Databar Font Manual Printing


If you are choosing Manual Mode for printing barcode then specify page properties (with the help of Edit button), margins etc. as shown in above screen.



Printing Barcode Labels :


Databar Barcode Labels



Label printing process is shown in above screen using thermal printer.



Databar Barcode Font Scanning Process :


Databar Font Scanning Process



Finally, you can easily use your printed labels for your industry requirement and read it encoded data.



If you want to print your designed barcode font using Pre define label stock mode, Go through below screenshots to know printing process:


Pre define Label Stock Print Settings :


Pre define printing Databar Font


In case of Pre Define Label Stock mode, choose Label product and set printer according to your need.


Printing Barcode Fonts on sheet:


Databar Barcode Font sheet


You can see printed sheet of Databar barcode font by Laser Printer.
