Industrial 2 of 5 Barcode Font


Industrial 2 of 5 is self-checking linear font. Barcode generator tool helps to create barcode font with different value and size. Software has Print settings, E-mail settings, Export-Import option, Batch processing series feature etc.




Sample of Industrial 2 of 5 Barcode Font
Sample of Industrial 2 of 5 Barcode Font
Industrial 2 of 5 Font Application area
Application area
Printing Industrial 2 of 5 Font Labels
Printing Industrial 2 of 5 Labels

Industrial 2 of 5 Barcode Font



Industrial 2 of 5 Barcode Font Video Tutorial





Sample of Industrial 2 of 5 Barcode Font



Sample of Industrial Barcode Linear Font


Sample of Industrial 2 of 5 Barcode Font designed using DRPU Barcode Generator Software.






Designing Procedure:


Generate Industrial 2 of 5 Barcode Font using DRPU Barcode Maker Software. Below we have provided procedure of designing sample of industrial 2 of 5 barcode font using Barcode Designing View option.

Note: You can also create your barcode using Barcode Settings option.


Go to drawing tools, click on barcode icon to insert barcode on label and double click on it to edit barcode properties.





Barcode Technologies and Font Type Selection :


Industrial 2 of 5 Font Generation


Choose barcode technology (Linear or 2D) and its font type (Industrial 2 of 5), set value of barcode with optional header and footer. You can also have an option to hide header, footer and value accordingly.



Size Settings :


Industrial 2 of 5 Font size settings


Set height and density of barcode along with different margins and then proceed to next screen.

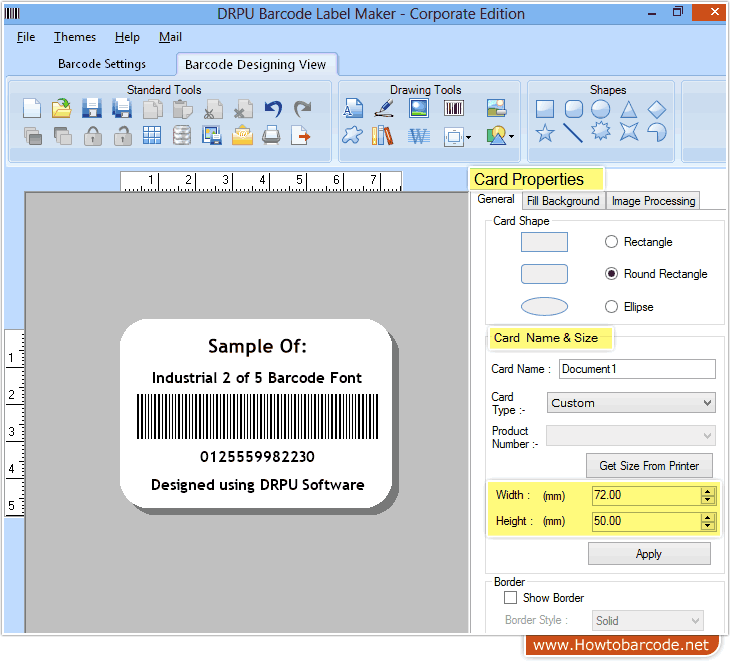

Specify Card Shape and Dimension :


Setting card dimension


Specify shape, name and size (height, width) of card to design Industrial 2 of 5 Barcode Font.





Go to print icon from toolbar and choose one of the printing modes either Pre Define Label Stock or Manual mode to print designed barcode font.



Print Settings using Manual Mode :


Manual Printing Process


In Manual mode, you have to set margins and print options including printer, total labels as per requirement. In order to change page properties go to Edit button.

Barcode printing :


Industrial 2 of 5 Barcode Labels



Above screen shows Industrial 2 of 5 Barcode Font labels printing process using Thermal Printer (Zebra TLP2844).



Barcode Label Scanning Process :



Printed roll of Industrial 2 of 5 font



Industrial 2 of 5 Barcode Label is now ready to use. Above screen displays scanning of Barcode Label to fetch its stored details.



You can also choose Pre Define Label Stock printing mode.

Print Settings using Pre Define Label Stock Mode :


Printing Process


In case of 'Pre Define Label Stock' Mode, choose Label Product (e.g. - Avery Zweckform) and Product Number. Set printer and click ‘OK’ to proceed.

Software also provide functionality to set your custom settings and save it for future reference.



Barcode printing process :

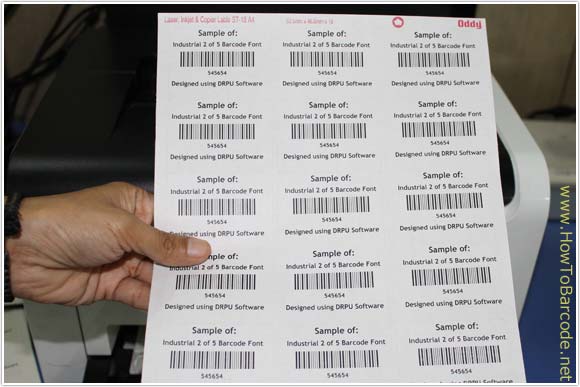

Sheet of Industrial 2 of 5 Labels



After Clicking ‘Print’ Button, you will get designed Industrial 2 of 5 Linear Barcode Font. Here, Laser printer is used for demonstration, you can choose any printer as per your choice.




Download Trial Version of Barcode Maker - Corporate Edition Software:
